Everyone has a collection of movies, songs, music videos, pictures, and more. Many people wonder how they can stream this content to all their home devices.
The solution is to use Plex Media Server, which allows you to stream your videos over a LAN network in your home to devices such as smart TVs, iPads, mobiles, tablets, and laptops.

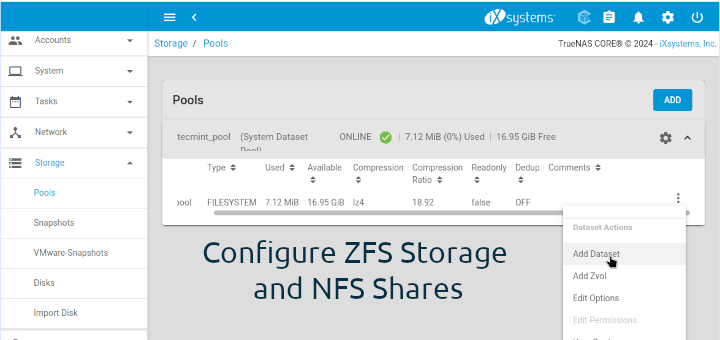

In our previous articles, we covered how to install TrueNAS Server and configure ZFS and NFS storage shares.
In this post, we will show you how to set up a home-based streaming server using the Plex Media Server plugin in TrueNAS.
Hardware Requirements
At a minimum, you’ll need one hard drive to store your media files, which can be either a traditional HDD or an SSD based on your performance needs and budget.
For a more robust setup, using at least two disks to enable a RAID configuration, such as RAID 1, which provides redundancy by keeping your data safe on the remaining disk if one fails.
The number of disks you need will also depend on the size of your media library. For instance, if you have a large collection of 4K movies, you’ll require more storage space compared to a collection of standard HD content.
Step 1: Creating a Storage Pool for Plex
To create a storage pool for your Plex media, you’ll need to connect additional drives for storing your media files (the capacity should be based on your needs). For my setup, I am using two 20GB drives to create a Plex pool using the RAID1 mirror method.
Open a web browser, navigate to your TrueNAS server’s IP address, and log in with your admin credentials. Then, go to the “Storage” > “Pools” and click on the “Add” button.
![Create Storage Pool for Plex](https://www.tecmint.com/wp-content/uploads/2015/02/Create-Storage-Pool-for-Plex.png)
![Choose Create New Pool for Plex](https://www.tecmint.com/wp-content/uploads/2015/02/Choose-Create-New-Pool-for-Plex.png)
Next, enter a name for your pool (e.g., “MediaPool”) and select your two 20GB disks from the list of available disks. Click “Add Vdev” to include these disks in your pool, then click “Create” to finalize the setup.
![Choose Name for Plex Pool](https://www.tecmint.com/wp-content/uploads/2015/02/Choose-Name-for-Plex-Pool.png)
Step 2: Creating a Datasets for Plex
Navigate to your newly created MediaPool, click on Add Dataset, enter a name for the dataset (e.g., PlexMedia), configure the settings as needed, and then click “Save” to create the dataset.
![Choose Add Dataset for Plex](https://www.tecmint.com/wp-content/uploads/2015/02/Choose-Add-Dataset-for-Plex.png)
![Choose Name for Plex Dataset](https://www.tecmint.com/wp-content/uploads/2015/02/Choose-Name-for-Plex-Dataset.png)
![List of Storage Pools](https://www.tecmint.com/wp-content/uploads/2015/02/List-of-Pools.png)
Step 3: Creating a Jail for Plex
A jail is an isolated environment within TrueNAS that allows you to run applications like Plex without affecting the rest of the system.
To create a Jails, navigate to Jails and click on “Add” to create a new jail.
![Create Jail for Plex](https://www.tecmint.com/wp-content/uploads/2015/02/Create-Jail-for-Plex.png)
Next, enter a name for the jail (e.g., “PlexJail”) and configure the settings as needed.
![Choose Name for Jail](https://www.tecmint.com/wp-content/uploads/2015/02/Choose-Name-for-Jail.png)
![Creating Jail for Plex](https://www.tecmint.com/wp-content/uploads/2015/02/Creating-Jail-for-Plex.png)
Step 4: Installing Plex Media Server on TrueNAS
Once the jail is created, navigate to Plugins, search for Plex Media Server among the available plugins, click Install, and follow the prompts to complete the configuration.
![Install Plex in TrueNAS](https://www.tecmint.com/wp-content/uploads/2015/02/Install-Plex-in-TrueNAS.png)
Next, choose the option to install Plex within the jail you created (e.g., “PlexJail”).
![Choose Jail for Plex Plugin](https://www.tecmint.com/wp-content/uploads/2015/02/Choose-Jail-for-Plex-Plugin.png)
After installation and configuration, open a web browser and navigate to the following URL, make sure to replace jail_ip with the IP address of your PlexJail.
http://http://192.168.122.37:32400/web)
![Access Plex Media Server](https://www.tecmint.com/wp-content/uploads/2015/02/Access-Plex-Media-Server.webp)
Step 5: Adding Media Files to Plex
In Plex, navigate to “Settings” and then “Libraries,” click “Add Library,” and choose the type of media you want to add, such as Movies or TV Shows.
Next, browse and select the dataset you created earlier, for example, “PlexMedia”, it will then scan this dataset for media files and add them to your library.
![Add Media to Plex](https://www.tecmint.com/wp-content/uploads/2015/02/Add-Media-to-Plex.webp)
Now that Plex is set up and your media is organized, you can access it from any device connected to your network. First, install the Plex app on your phone, tablet, or smart TV. Then, open the app and sign in with your Plex account. You should now see your media libraries and can start streaming content.
![Install Plex App](https://www.tecmint.com/wp-content/uploads/2015/02/Install-Plex-App.webp)
![Plex Media Server Streaming](https://www.tecmint.com/wp-content/uploads/2015/02/Plex-Media-Server-Streaming.webp)
Conclusion
You’ve successfully set up a home media streaming server using Plex with TrueNAS. You can now enjoy streaming your favorite movies, TV shows, and more from any device connected to your network.
